Starting year : 1978
STEEL PALLET
- These are same type of pallets with an exception of having a four way entry for the fork lift and stackers.
- Single deck pallets can be designed with load carrying capacities from 500 kg to 1500 kg (far superior to wooden or plastic pallet.)

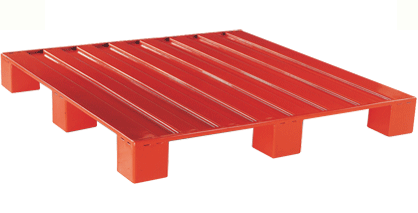

- The construction of the pallet is such that there are nine square blocks, sheet metal formed components which are welded on to the under side of a corrugated sheet plank, allowing the pallet use from all four sides.
- This types of pallets are compatible with hand pallet truck also.
- This pallets are also called as Non Resersible Four Way Entry Type Pallet.
MODEL NUMBER |
W |
D |
T |
X |
Y |
PI-800 |
800 |
800 |
125 |
75 |
287.5 |
PI-1000 |
1000 |
1000 |
125 |
100 |
350 |
PI-1200 |
1200 |
1200 |
125 |
100 |
450 |
PI-800-FWE |
800 |
800 |
125 |
75 |
287.5 |
PI-1000-FWE |
1000 |
1000 |
125 |
100 |
350 |
PI-1200-FWE |
1200 |
1200 |
125 |
100 |
450 |
|
|
